Wall Mounted Generator Base – Model #WMGBALWB

Description

Designed for strength, durability, and adaptability, the Wall Mounted Generator Base is the ultimate solution for installing 10-26kW Generac, Kohler, and Briggs & Stratton standby generators in flood-prone areas or locations with space constraints. Built from corrosion-resistant, structural, and marine-grade aluminum, this elevated mounting system provides reliable support and long-term protection, ensuring uninterrupted power even in extreme weather conditions.

Key Features:

• Perfect for Flood-Prone Areas

  • Elevates your generator above snow accumulation and floodwaters, ensuring continued operation in harsh conditions.

• Code-Compliant Structure

  • Features a deck size of 49″ x 26″ with an 18″ hollow clearance behind the generator, meeting manufacturer setback requirements.
  • Compatible with solid wall structures when installed according to local building codes and safety guidelines.

• Robust Build & High Load Capacity

  • Constructed from 4″ x 3″ x 1/4″ aluminum angles and reinforced with 3″ x 3″ x 3/16″ cross tubes, providing exceptional durability.
  • Rated to support over 2,500 pounds, ensuring long-lasting structural integrity.

• Maintenance Made Easy

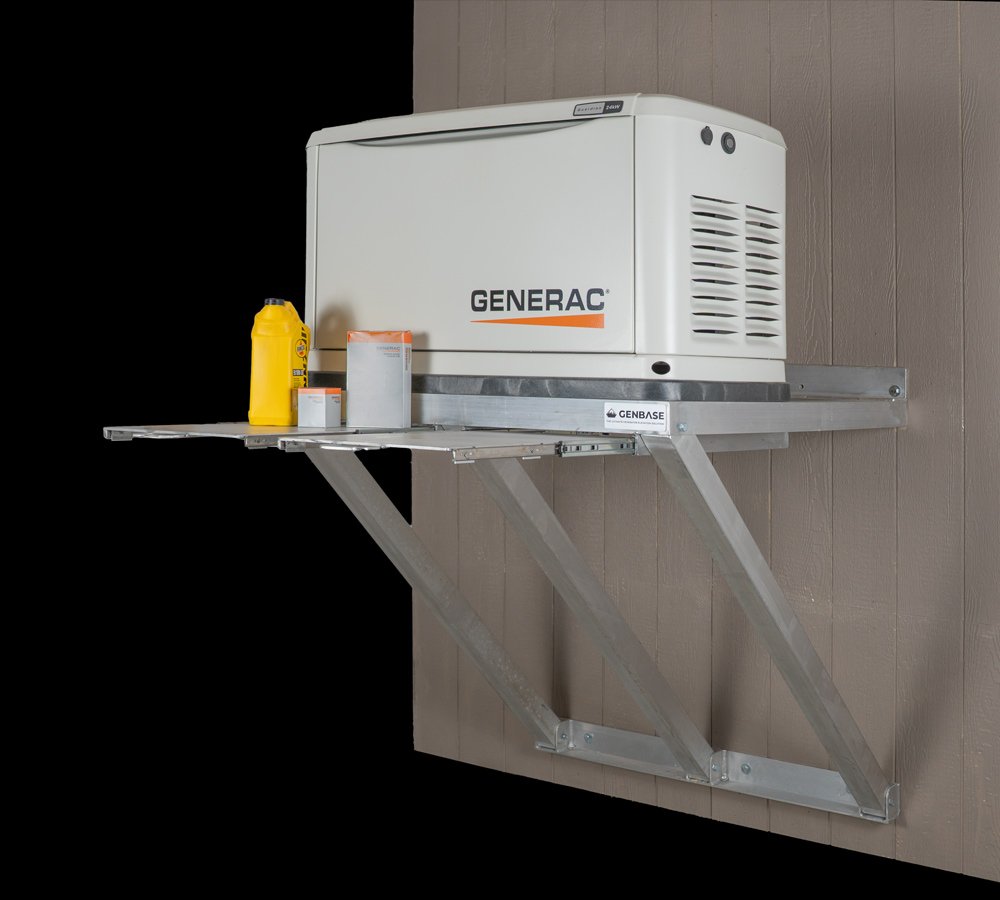

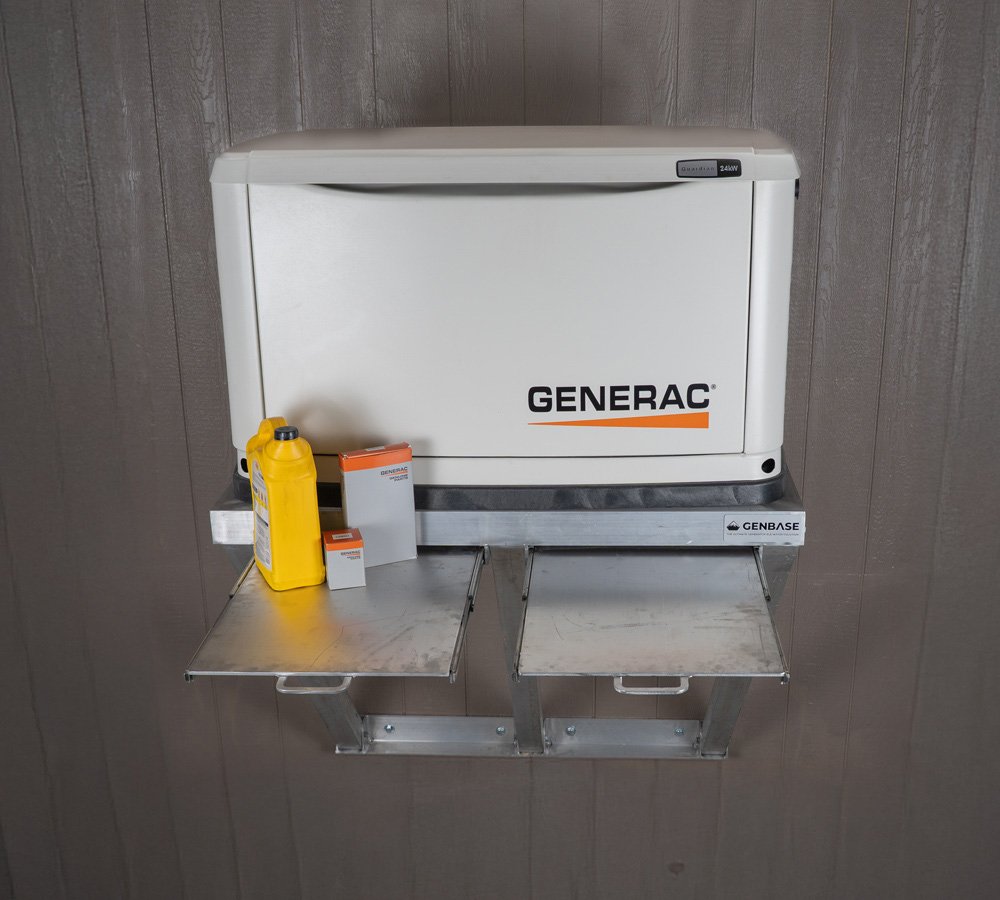

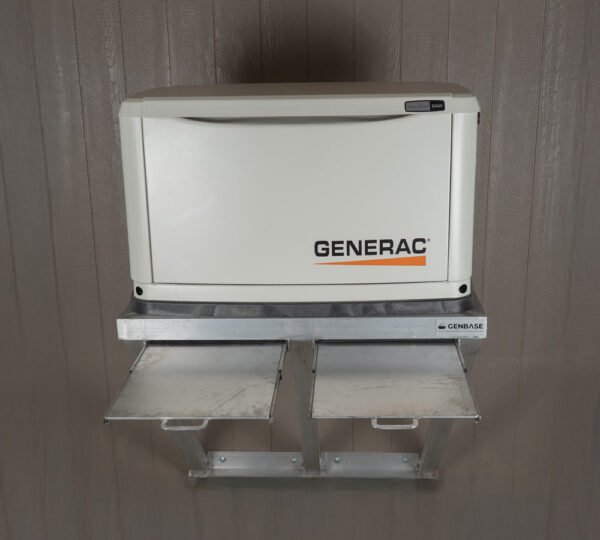

  • Includes two sliding trays for the convenient placement of maintenance kits, simplifying servicing even when the generator is elevated.

• Compact Shipping & Storage

  • Shipped as a kit of welded components, tubes, and hardware, reducing shipping costs and storage requirements.

• Weather-Resistant Design

  • This Wall Mounted Generator Base is engineered to withstand hurricane-force winds, offering long-term reliability in the most demanding environments.

Customization Options:

• Comes with pre-drilled holes and necessary hardware for Generac 10-26kW generators.
• Available without holes for select Kohler and Briggs & Stratton models, allowing for flexible installation.

Why Choose the Wall Mounted Generator Base – Model #WMGBALWB?

This expertly engineered generator mounting base is a secure, space-saving, and flood-resistant solution for both residential and commercial applications. Designed for easy assembly, reliable support, and minimal maintenance, it ensures your generator remains protected and operational in any setting.
